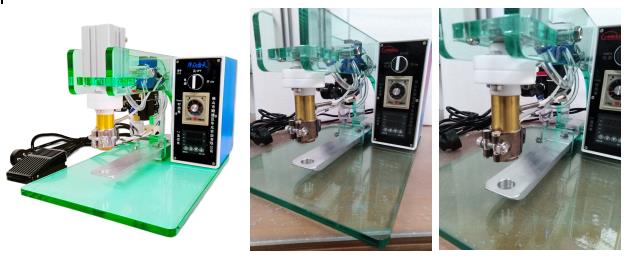

Model：HZJP1

Technical Parameters:

Voltage：220V

Power：100W

The main material of the rack：acrylic and aluminum materials

Working air pressure：2－4  KGF/CM2

Machine size: 42×25×24 cm

Packing size: 46×31×30 cm

N.W.: about 5.25kg

G.W.: about 6.73kg

Applications: coffee bags, food packaging bags, zipper stand-up bags, pet feed bags, fermented feed packaging bags, paper-plastic composite bags and other general composite bags and multi-layer co-extrusion bags.

Remark:

1. Can customize different mold for different types of valves, it is very convenient and efficient.

2. Need to use with the air compressor.

3. The maximum distance of valve in coffee bag: about 15cm to 16cm from the pocket mouth to the middle of valve

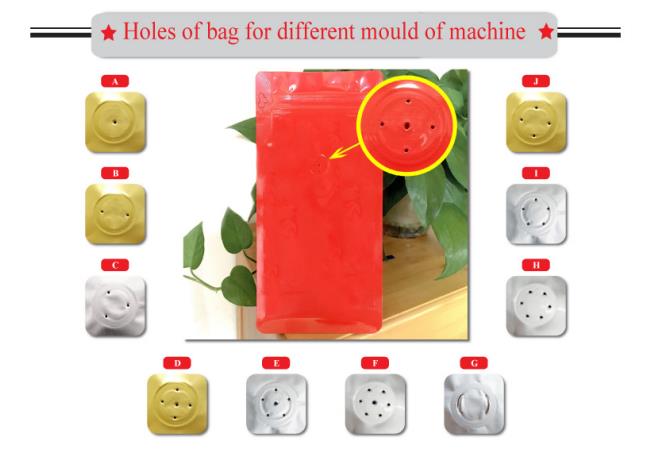

The bag pressing effect of different mould:

(Note: one machine is only equipped with one mould)
